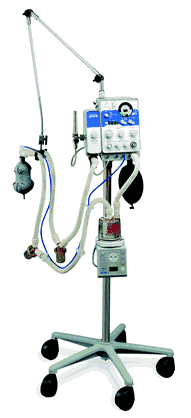

E100M Neonate - Pediatric - Adult

The compact E100M offers built-in value with quality engineering and application versatility. The E100M can simplify ventilator set-up, training and use with innovative features such as Automatic Trigger Control and Auto-Set Alarms. In addition to comprehensive alarms and monitoring, the E100M Ventilator also offers:

  • Volume or Pressure Ventilation
  • Back-up Ventilation
  • DuoFlow
  • Time-Limited Demand Flow
  • Built-in Battery Back-up, up to 8 hours
  • Built-in Air/Oxygen Mixer

The Newport E100M Ventilator is the intelligent choice for adult, pediatric and neonatal applications in many areas of the hospital, including the emergency room and intra-hospital transport, and for sub-acute/long term care facilities.

E100M Ventilator Specifications

PATIENT RANGE
Neonate - Pediatric - Adult

CONTROLS/SETTINGS
Modes: Pressure
or
Volume
A/CMV
SIMV
SPONT + APNEA A/CMV
SPONT
DIMENSIONS
Width:9.5 in (24.1cm)
Depth:6.5 in (16.5cm)
Height:10.5 in (26.7cm)
Weight:18lbs (8.2kg)
MISCELLANEOUS
Operating Temperature:0- 40 C
Operating Altitude:0 - 10,000 feet (0 - 3,048 meters)
Pneumatic:35 - 90 psig medical air
35 - 90 psig oxygen
Storage Temperature:-20 - +60 C
Internal Compressible Volume:29 mL
Flow Waveforms:Volume control - square wave
Pressure limit - descending ramp
RS 232C Interface:25 pin D type/38,400 baud
Remote Alarm Output:Operates with most nurse call systems
External Alarm Silence Input:10 ft cable optional accessory
External Battery Input:12 VDC battery input
AGENCY REQUIREMENTSMeets requirements of CSA 22.2 IEC 601-1 and IEC 601-1-2 EMC MDD Directive 93/42/EEC
POWER REQUIREMENTS 100, 120 VAC 0.14 A maximum
220, 240 VAC 0.07 A maximum
50/60 Hz
INTERNAL BATTERY 6-8 hrs typical
(min 4 hr @ maximum load)
