The advanced PC Based 12 lead EKG and Stress Test System

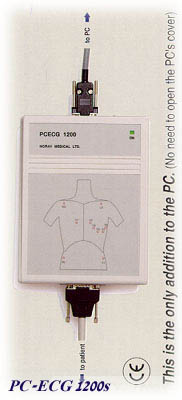

Three models are offered either with GammaHealth's software package for variety of applications or as OEM module for ECG recording. A WIN95/98/NT DLL (OCX) with sample code for Visual C++, Visual Basic and Delphi , is offered free of charge to OEM customers. The PC-ECG 1200 system does not require any interface board in the PC. The design meets the IEC601-1,-25,27 standards.

ECG Acquisition Module 500 Samples per Second per channel Data ECG Acquisition 12 Bit High Resolution ECG Recordings Simultaneous 12 Lead Acquisition All Channels can be Sample/Hold 3 Filters for Clean Tracings - Baseline, Muscle, A/C Shielded Patient Cable for Less Artifact Built-in Defibrillation Protection - 400 Joules Resting ECG Software Real Time 3, 6 or 12 Lead Display Recording Speeds of 12.5, 25, 50 & 100 mm/sec Amplitude/Gain Settings of .5, 10, 20, 40 mm/mV Automatic or Manual ECG Measurements with ST Level Automatic Restart in Case of Poor Quality ECG (Artifact) Comprehensive Printout Formats User Defined Reports Miniature Printout for Patient carrying Stress Testing Software All of Resting ECG Features PLUS: Std. Protocols such as: Bruce, Bruce Modified, Balke, Ellestad User Programmable Protocols (Stages, Length, Speed, Grade) Automatic or Manual Control of Treadmill or Ergometer View All 12 Leads Simultaneously in Real Time Instant Print Feature with Laser Printer Ability to Enter Blood Pressure Measurements at any time Continue Monitoring AFTER Treadmill is OFF User Defined Printouts During the Test User Defined Print Formats and Reports All 12 Lead Acquisition and Analysis User Defined ECG Events, Capture and Printing Automatic ST Event Capture and Printing ST Measurement Trends, Displayed and Printed User defined J Points Heart Rate and Blood Pressure Trend Graphs, Displayed and Printed Averaged Beats Displayed and Printed Continuous Printing of Averaged Beats Throughout the Test Baseline Correction Filter Heart Rate Expected/Achieved Displayed Dual Clocks for Total Time and Stage Time Audible Alarms Window, Averages, Trends, QRS, Display Choices Full Disclosure of the Entire Test of All 12 Leads ECG ECG Data Management Patient List Cataloged on Disk Patient ECG Cataloged on Disk Ability to Save to Hard Disk or Floppy Ability to Restore from Floppy Diskettes Ability to Compare Patient’s Resting ECG with Previous Resting ECG Ability to Sort Patient List Through a Variety of Categories (e.g.: Name, Date, etc.) Ability to Archive to Zip Drive Diskettes Ability to "E-mail" Patient Studies Via Internet Supported Treadmills/Ergometers (Computer will Control) Treadmills - Trackmaster, Challenger, Rodbey, Ram, SBI, Parker, Other (for manual Control) Ergometers - Seca, Ergoline, Dynavit, Other (for manual Control)
